2.4G remote control

2.4G remote control

short description:

2.4G remote control is a very common radio frequency remote control on the market.

2.4GHz is a public frequency, around 2400MHz.


Product Detail

Product Tags

2.4G remote control is a very common radio frequency remote control on the market.

2.4GHz is a public frequency, around 2400MHz.

Since the bandwidth of the 2.4GHz frequency band is much wider than 72MHz, 40MHz, 35MHz (the 72MHz frequency band only contains 50 frequency points, 2.4GHz can contain 400 frequency points), the probability of re-frequency is much lower than that of traditional frequency remote controllers. The GHz electromagnetic wave has good linearity, short antenna, and easy to use, so it is loved by some aircraft enthusiasts. 2.4GHz remote control has a lot of usable frequency points; in addition, 2.4GHz radio wave has strong diffraction ability, and it is not easy to lose control when there are obstacles.

2.4G remote control is mostly used in the communication field. It is weak penetration of obstacles~~Because it is shortwave.

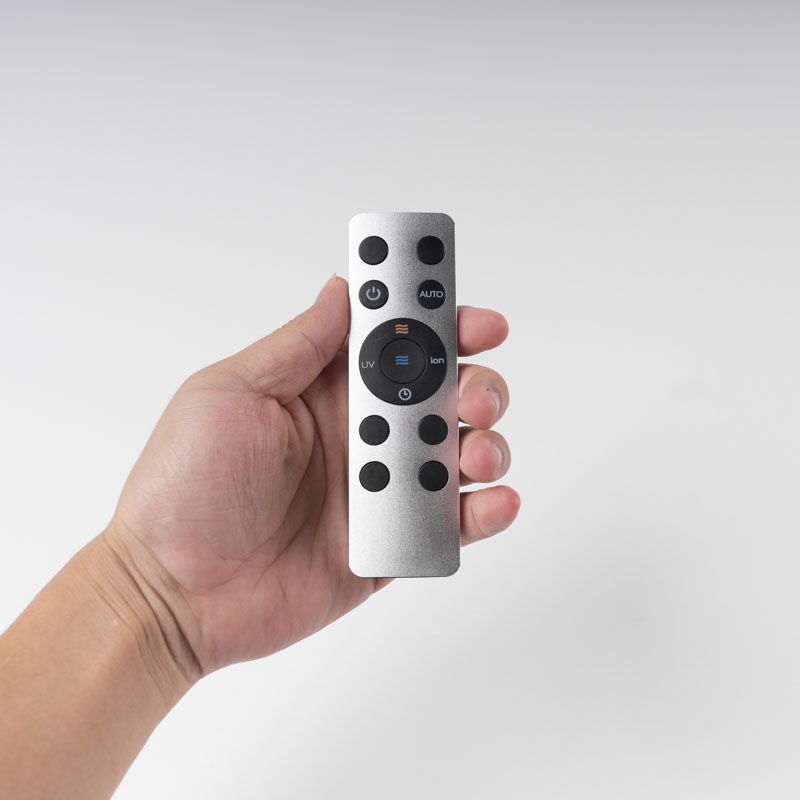

DT-013AL use the aluminum shell and high-quality chip to complete the 2.4G signal transmission function.

PRODUCT SPECIFICATIONS


Model Number DT-013AL
Product 9-key RF remote control with USB HID receiver
RF 2.4 GHz ISM band(2.4 GHz ISM Frequency band)
PCB EP0050406  Schematic diagramBK2452_MODULE_V2
Transmission > 10 m
Size 120 x36 x 9 mm
Battery CR2032
Currency < 10mA
Pairing Pairing: By default, the remote control needs to be paired with the USB HID receiver in advance. Press these two keys            at the same time for 3 seconds, the remote control enters the pairing state。
HID  By default, the remote control must appear on the Android USB host as a keyboard device name
HID usage IDs When the remote control button is pressed, the transmission of HID use ID must follow the specification table on page 2.
  Design





All buttons must be black with white silk screen.
The buttons must be marked according to the drawings in the specification sheet.
Logo: The remote control must include the LOGO according to the drawings in the specification sheet.
According to the image, the color of the remote control is aluminum alloy primary color.


Product Storage & Operation Environment-20℃60℃



Ambient temperature
Relative humidity45%75% RH 86106Kpa
Atmospheric pressure Natural light or fluorescent light 200±50LX
Environmental illuminance (use)
Product Material &Color StyleAluminum



shell material
Plastic materialABS/---■white□black ABS
Buttons material FR4
PCB material Transmission:BK2452   Receiver: BK2451
Chip 2.4G
Remote control transmitter Next page
Remote control transmitter code table Next page
Product appearance design 9.8*35.8*120.6
Product Size 39g
Product weight Button battery
Battery Button Cell CR2032
Battery specification
Testing StandardTemp.=25℃)(Product Feature)DC 3V



Rated working voltage
Operating voltage rangeDC 2.4V-5.0V <15mA
Operating current range ≤5uA
Stand-by current <30mAV/time
Transmit power ≥15M (Axis direction; unobstructed, standard receiving device)
Launch distance N/A
Directional launch angle ≥8M (2.5V axis direction; no obstruction)
Undervoltage transmission distance ≤2mm
Free height of keys 180±20g
Button force ≥10 Million times
Button load life 76cmHard floor/100cm(Wooden floor)
Free drop test 6 次(Once per side
Free fall times Three-dimensional direction; 1.5mm amplitude; 500-3300 times/sec
Vibration test(30min) 60℃72h
High temperature storage test -20℃(72h)
Low temperature storage test 40℃ relative humidity 90%
Constant humidity test
PACKING



Packing : PE bag(PE-LD) 380PCS/CTN
Cartons

Design:

guige2
guige1
guige3

D009

D009-1
D009-2
D009-3

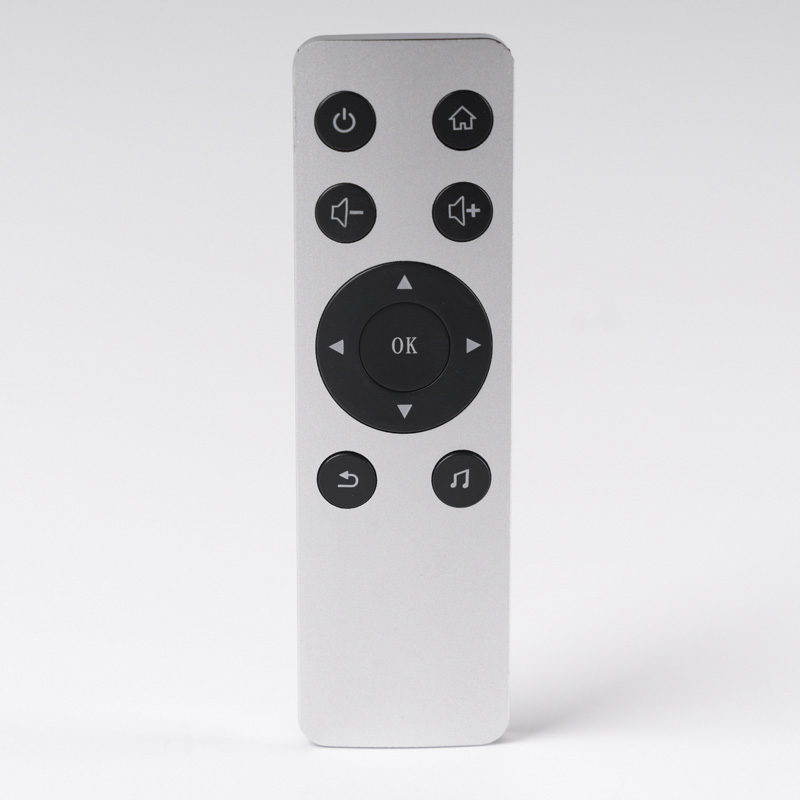

D011

D011
D011-2
D011-3

D015

D015-2
D015-3
D015-4

DT013AL

DT013AL
DT013AL-2
DT013AL-3

DT013pink

DT013pink
DT013pink-2
DT013pink-3
